Model Type:Discrete Input Module
Manufacturer:Allen-Bradley
Model Number:1756-IB16
Input Type:Digital
No. of Inputs:16
Communication Cable:16-point
Voltage Category:24V DC
Operating Voltage Range:20.4…26.4V DC
Current per Point:Up to 0.5A @ 60°C (140°F), 1.0A @ 30°C (86°F)
Power:24 Volts DC
Bus Current Draw, Max:200mA
Mounting:DIN Rail or Panel Mount
Temperature Rating:0…60°C (32…140°F)
Isolation:30V Continuous
Environmental Conditions:5…95% Non-Condensing Relative Humidity
Vibration:2G
Shock:30G
Connection:Shielded or Unshielded Twisted Pair Cables
Enclosure:Open Type
Communication Speed:10/100 Mbps
Communication Protocol:Ethernet/IP Bridge

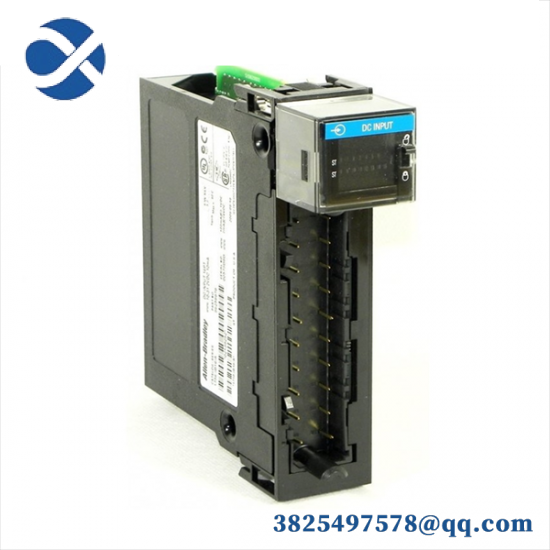

The Allen Bradley 1756-IB16 Input Module is designed for high-reliability applications, offering a robust solution for monitoring and controlling industrial processes. It provides 16 discrete inputs, ideal for detecting various states in machinery or production lines.
Each input channel features advanced isolation technology, ensuring safety and preventing signal interference. The module supports Modbus/TCP communication protocol, enabling seamless data exchange with Allen-Bradley ControlLogix PLCs and other compatible devices.
With an operating temperature range of -40°C to 70°C, this input module is suitable for harsh industrial environments. Its compact design allows easy installation on DIN rails or panels, minimizing space requirements on the factory floor.
For enhanced system efficiency, the Allen Bradley 1756-IB16 includes advanced diagnostics capabilities, which continuously monitor the health of the inputs, alerting operators to potential issues before they disrupt production.
The module’s comprehensive feature set, combined with its durability and ease of integration, makes it an indispensable component in modern industrial automation systems. Whether you are upgrading existing infrastructure or building new facilities, the Allen Bradley 1756-IB16 ensures optimal performance and reliability in your operations.
