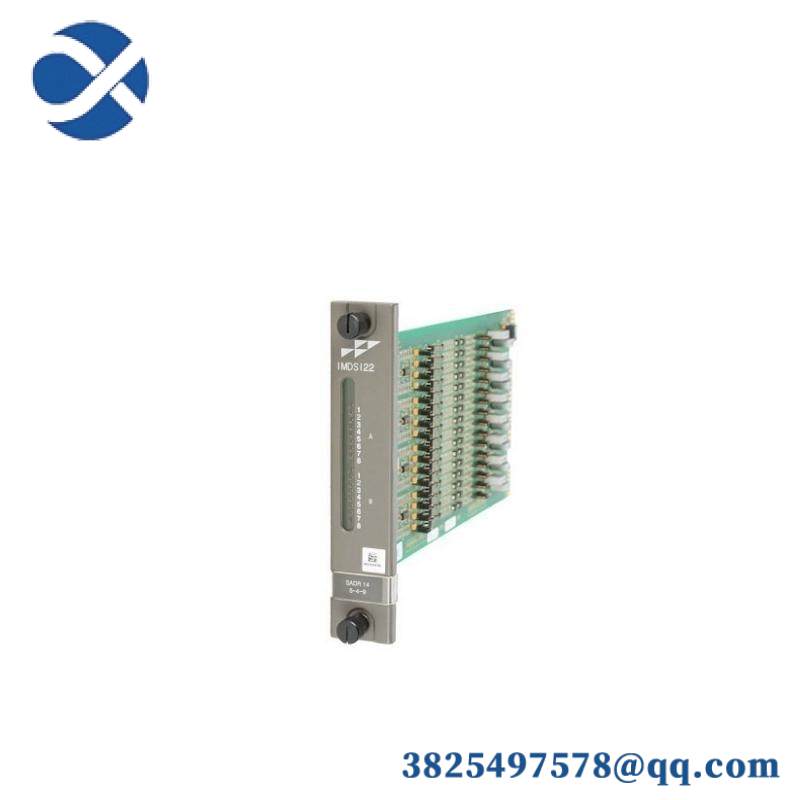

ABB IMDSI22 – High-Precision Digital Signal Input Module

Module Type:Digital Signal Input

Model Number:IMDSI22

Number of Channels:16

Signal Handling:Analog and digital signals

Input Range:0-20mA, 4-20mA, 0-10V DC

Power Consumption:Max 10W

Communication Protocol:Profinet, Modbus

Operating Temperature:-25°C to +70°C

Humidity Range:5% to 95% non-condensing

Material:Aluminum alloy

Enclosure Protection:IP65

    The ABB IMDSI22 Digital Signal Input Module offers unparalleled precision in data acquisition for critical industrial applications. With 16 input channels capable of processing digital signals at a high sampling rate of 10 kHz, it ensures accurate and responsive system operation.

    Equipped with a 12-bit resolution, this module guarantees exceptional data accuracy, which is essential for reliable process control and monitoring. Its MODBUS TCP/IP connection type facilitates seamless integration with various industrial automation networks, enhancing system efficiency and compatibility.

    Operating within a temperature range from -25°C to +60°C, the ABB IMDSI22 is designed to withstand harsh industrial environments, ensuring continuous performance under challenging conditions.

    With its low power consumption of 10 mA, the module optimizes energy use without compromising on performance. Compact in size, it fits easily into space-constrained systems without sacrificing functionality.

    The IP20 enclosure rating provides basic protection against dust and splashes, ensuring reliable operation in diverse industrial settings. Whether used in manufacturing lines, process control, or automation systems, the ABB IMDSI22 Digital Signal Input Module delivers superior performance and reliability.
