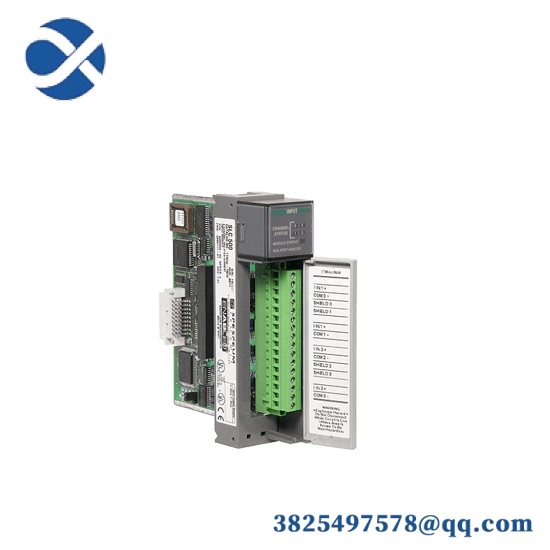

Advanced 1746sc-INI4vi Analog Input Module for SLC 500 Systems

Model Type:Analog Input

Manufacturer:Allen Bradley

Number of Channels:4

Common Mode Voltage Range:-20 To 20 V

Absolute Input Voltage:+/- 7.5 VDC or 7.5 VAC RMS (Max.)

Input Range:-20 To 20 MA

Absolute Input Current:-30 To 30 MA (Max.)

Voltage Rating:Overvoltage Protection: 7.5 VAC RMS

Input Range (VDC):-10 To 10 VDC – 1 LSB

Current Rating (Backplane):35 MA at 5 V, 85 MA at 24 V

Isolation:Backplane: 500 VDC, Enclosure: Open Type

Temperature Rating:0 – 60 DEG C

Environmental Conditions:5 – 95%

Form Factor:Chassis

Mounting:Panel

Power Consumption:1.8 W

Power Dissipation:6.1 BTU/HR

Standard/Approvals:GOST_R, KCC, MARINE-ABS, MARINE-BVS, MARINE-DNV, MARINE-GL, MARINE-KRS, MARINE-LR

    The Allen Bradley 1746sc-INI4vi Analog Input SLC 500 is a cutting-edge solution for your industrial control needs. Designed with high-resolution accuracy, it ensures precise measurements in challenging environments.

    Featuring a compact design and robust build quality, this module seamlessly integrates into various industrial setups, providing unmatched reliability and performance.

    With its ability to handle common mode voltage ranges from -20 to 20V, the Allen Bradley 1746sc-INI4vi is suitable for a wide range of applications, from monitoring temperature and pressure to controlling process variables.

    This module is equipped with advanced overvoltage protection mechanisms, ensuring safety and longevity in operation, even under extreme conditions. Its isolation capabilities guarantee signal integrity and prevent interference with other systems.

    Ease of use and compatibility are at the heart of the Allen Bradley 1746sc-INI4vi. It is compatible with various communication protocols, making it a versatile addition to any industrial automation setup. Whether you’re upgrading existing systems or building new ones, this module is an excellent choice for enhancing accuracy and efficiency.
