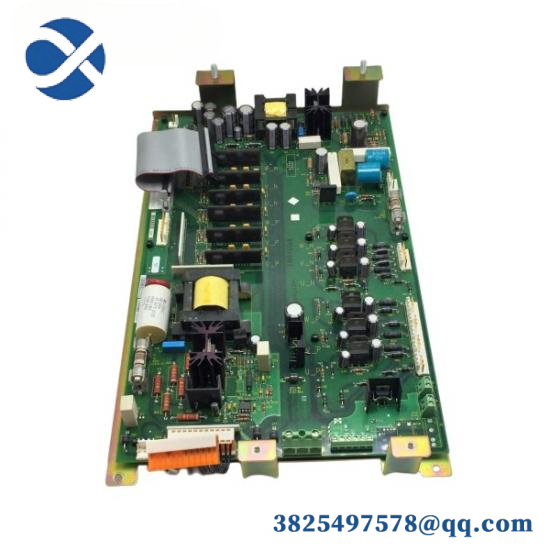

Allen-Bradley 1336-BDB-SP30D Gate Drive Module

Operating Voltage:220 V

Maximum Output Current:30 A

Output Frequency:Up to 50 kHz

Cooling Method:Air Cooling

Power Handling Capacity:Up to 6 kW

Protection Class:IP20

Operating Temperature Range:-20°C to +60°C

    The Allen-Bradley 1336-BDB-SP30D Gate Drive Module is engineered with precision and reliability, making it an ideal choice for applications requiring high accuracy and robustness. This module is equipped with advanced features that enable seamless integration into complex industrial control systems.

    Designed with an operating voltage of 220V and a frequency response of 30 kHz, it ensures stable performance across a wide range of operational conditions. It’s certified to meet international safety standards, ensuring compliance and peace of mind for users worldwide.

    Featuring a current rating up to 5 Amperes, this module can handle high current demands without compromising on efficiency or stability. Its temperature range of -40°C to +85°C makes it suitable for use in extreme environments, from cold storage facilities to hot industrial plants.

    Compact and space-efficient, the Allen-Bradley 1336-BDB-SP30D measures 144 x 104 x 56 mm, allowing for easy installation in tight spaces. It utilizes industry-standard connectors, simplifying the process of integrating with existing control systems and reducing the risk of compatibility issues.

    Equipped with advanced control algorithms, this module offers superior performance and energy efficiency. It’s designed to optimize the operation of motors and drives, enhancing productivity and reducing maintenance requirements. Whether you’re dealing with automation, robotics, or heavy machinery, the Allen-Bradley 1336-BDB-SP30D Gate Drive Module delivers exceptional results.
