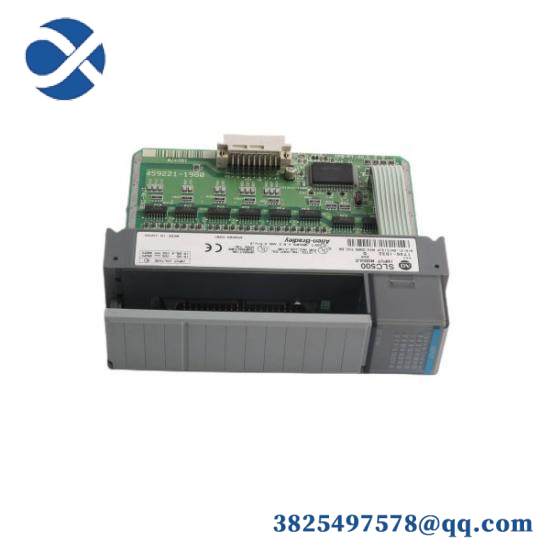

Allen Bradley 1746-IB32/D SLC 500 Input Module – High Precision Data Acquisition Solution

Model Number:1746-IB32/D

Manufacturer:Allen Bradley

Type:Input Module

Module Class:SLC 500

Channels:32

Signal Type:Digital DC

Voltage Range:5 – 50 VDC

On-State Voltage Drop:1.2 V

Off-State Output Leakage:1 MA

Load Capacity:1 MA

Current Rating @ 60°C:Continuous 0.25 A per output, 8 A per module

Isolation:Communication circuits: 500 VDC, Backplane: 1500 VAC, Processor: SLC 500

Environmental Conditions:Temperature: 0 – 60°C, Humidity: 5 – 95%

Enclosure:Open type

Mounting:Chassis

Temperature Rating:0 – 60°C

    The Allen Bradley 1746-IB32/D SLC 500 Input Module is engineered for seamless integration into complex industrial automation systems. Its robust design ensures reliability and longevity in harsh operational environments.

    Equipped with 32 digital channels, this module provides efficient signal processing capabilities, making it ideal for applications requiring precise control and monitoring of various industrial processes.

    Featuring a wide common mode voltage range and absolute input voltage specifications, the 1746-IB32/D offers exceptional versatility and compatibility with a variety of input sources.

    Designed with user convenience in mind, the open type enclosure and chassis mounting method facilitate easy installation and maintenance without compromising on the module’s compact size and portability.

    Operating within the temperature range of 0 to 60 degrees Celsius, the 1746-IB32/D maintains optimal performance under varying environmental conditions, ensuring consistent operation throughout its lifecycle.
