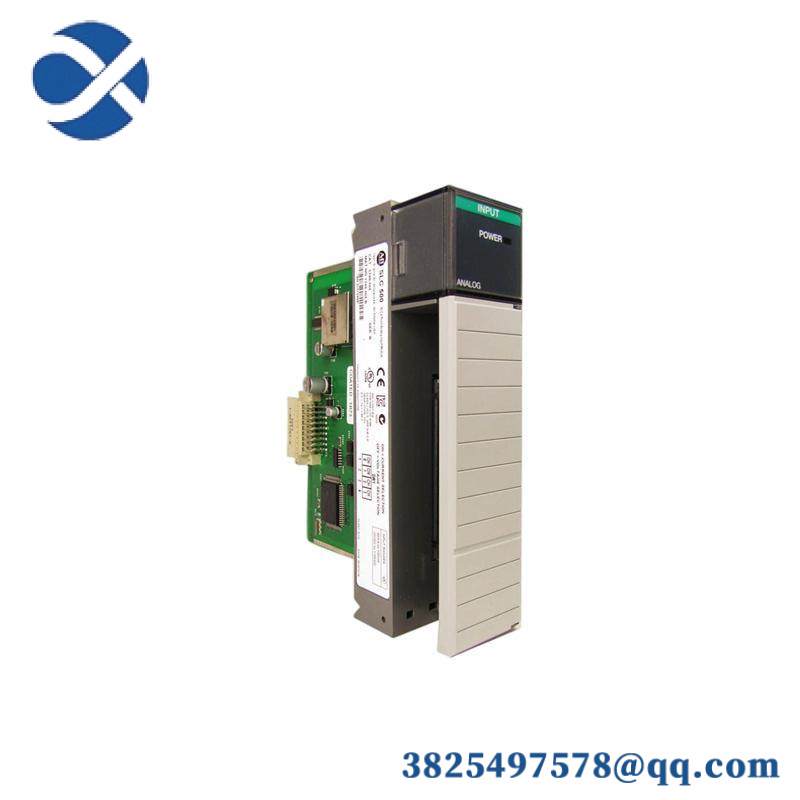

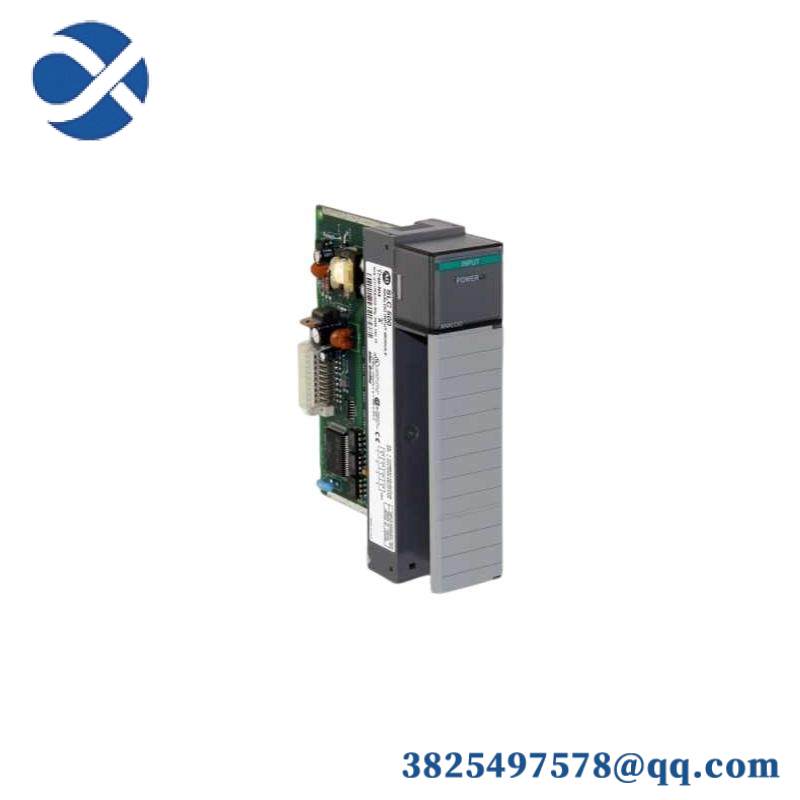

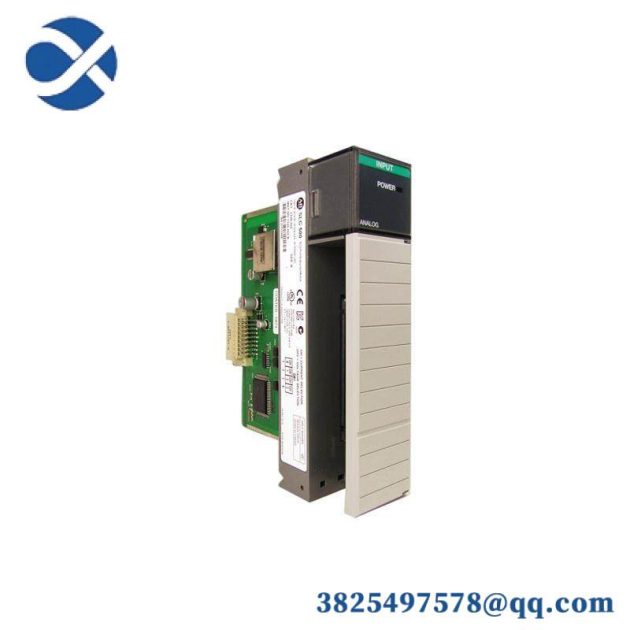

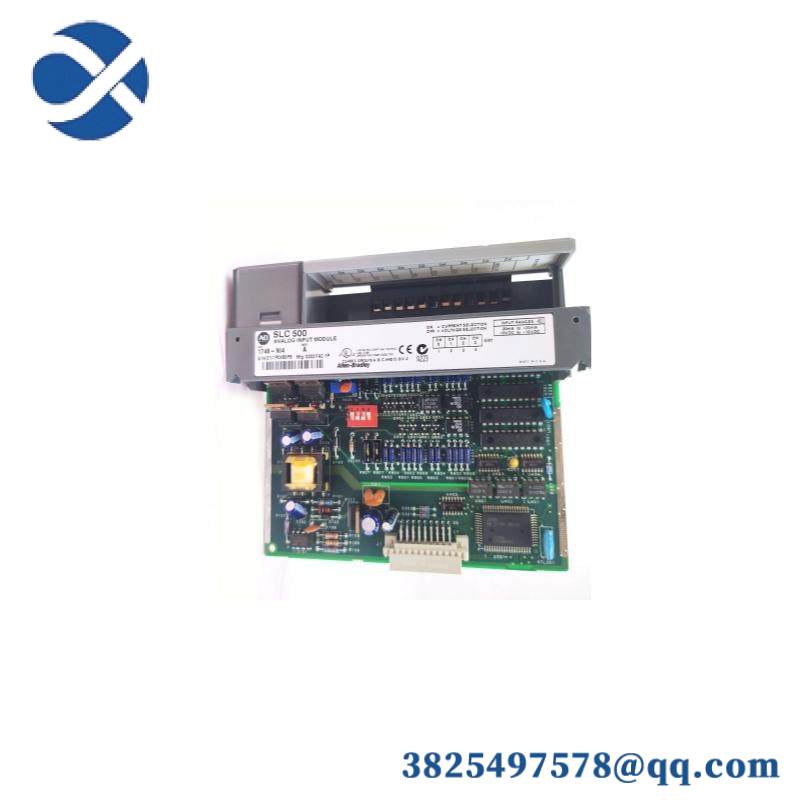

Type:Analog Input Module
Model Number:1746-NI4
Manufacturer:Allen Bradley
Channels:4
Common Mode Voltage Range:-20 To 20 V
Absolute Input Voltage:Plus/Minus 7.5 VDC Or 7.5 VAC RMS (Maximum)
Input Range:-10 To 10 VDC – 1 LSB
Absolute Input Current:-30 To 30 MA (Maximum)
Voltage Rating:Overvoltage Protection: 7.5 VAC RMS
Current Rating:Backplane Current Draw: 35 MA At 5 V, 85 MA At 24 V
Isolation:Backplane: 500 VDC, Enclosure: Open Type
Unleash the power of precision with the Allen Bradley 1746-NI4, designed for unparalleled performance in industrial automation environments. This module seamlessly integrates into your control system, providing you with four high-resolution analog inputs capable of detecting subtle changes in your process parameters.
With a common mode voltage range of -20 to 20 V and an absolute input voltage of plus/minus 7.5 VDC or 7.5 VAC RMS (maximum), this module ensures reliable operation across a wide range of conditions.
Featuring overvoltage protection of 7.5 VAC RMS, it safeguards against electrical surges, ensuring uninterrupted service and longevity.
The backplane current draw of 35 MA at 5 V, increasing to 85 MA at 24 V, allows for efficient power consumption, optimizing energy usage within your system.
Equipped with robust isolation capabilities, including 500 VDC for the backplane and open type enclosure, this module ensures a secure and isolated connection, minimizing interference and enhancing system reliability.
