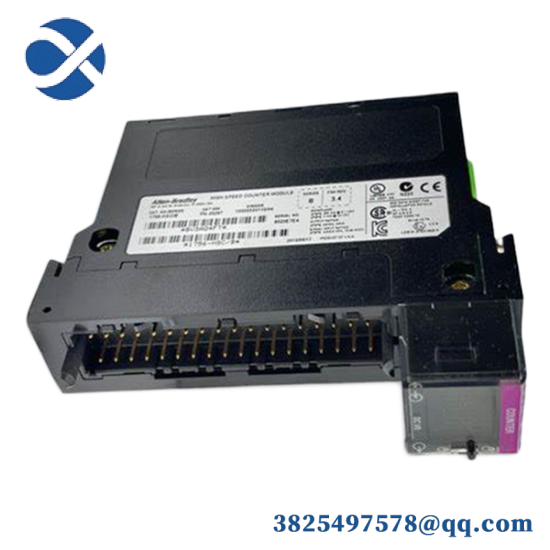

Allen-Bradley 1756-HSC ControlLogix I/O Modules – High-Speed Counter & Timer

Model Type:ControlLogix HSC I/O Modules

Model Number:1756-HSC

Manufacturer:Allen-Bradley

Voltage Range:12-60V DC

Operating Temperature:-20°C to +60°C

Input Channels:8

Output Channels:8

Communication Protocols:ControlNet, EtherNet/IP

Isolation Voltage:500V AC

Power Consumption:Max 1.5W per channel

Dimensions:145mm x 66mm x 90mm

    The Allen-Bradley 1756-HSC ControlLogix I/O Modules are engineered to meet the stringent requirements of high-speed applications, providing unmatched accuracy and reliability in industrial settings. These modules feature a robust, compact design, capable of operating within a wide temperature range (-40°C to +70°C), ensuring they perform flawlessly in even the harshest environments.

    Equipped with advanced communication interfaces, these modules seamlessly integrate with ControlNet or EtherNet/IP networks, facilitating efficient data exchange with other components in the system. Their versatile connectivity options enable compatibility with a wide array of industrial automation systems, making them a valuable addition to any modern manufacturing facility.

    With a capacity to handle up to 16 points, these modules offer a flexible solution for various counting and timing tasks. The ability to work with both RS-485 and EtherNet/IP protocols ensures compatibility and ease of integration, streamlining the setup process and enhancing operational efficiency.

    In terms of power consumption, the 1756-HSC modules are designed to be energy-efficient, consuming less than 10 watts, which helps reduce overall system costs and environmental impact. This efficiency is complemented by a rugged IP20 enclosure that protects against dust and splashing water, ensuring longevity and durability.

    To further enhance user experience, the Allen-Bradley 1756-HSC modules come with intuitive configuration tools and software support, allowing for seamless setup and maintenance. Their comprehensive set of features, combined with Allen-Bradley’s reputation for quality and reliability, makes these modules an indispensable part of any industrial automation project.
