Board Type:PCB Gate Drive
Model Number:1336-BDB-SP30D
Brand:Allen-Bradley
Operating Voltage Range:24VDC to 115VAC
Current Rating:Up to 30A
Package Size:Compact and Durable
Environment Compatibility:Industrial Grade, Wide Operating Temperature Range
Communication Interface:RS-485
Load Capacitance Compatibility:Up to 100nF

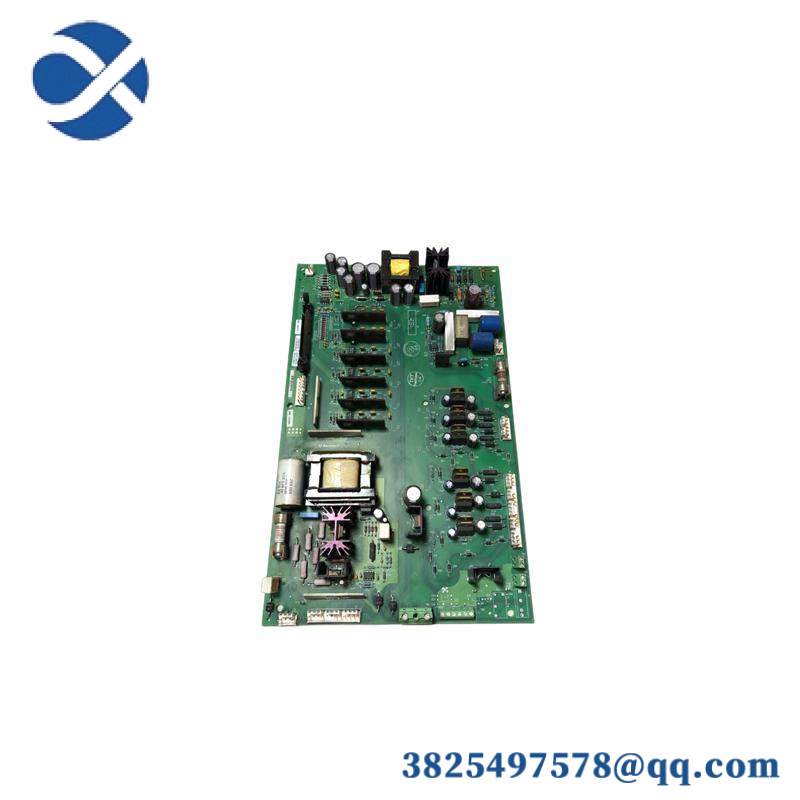

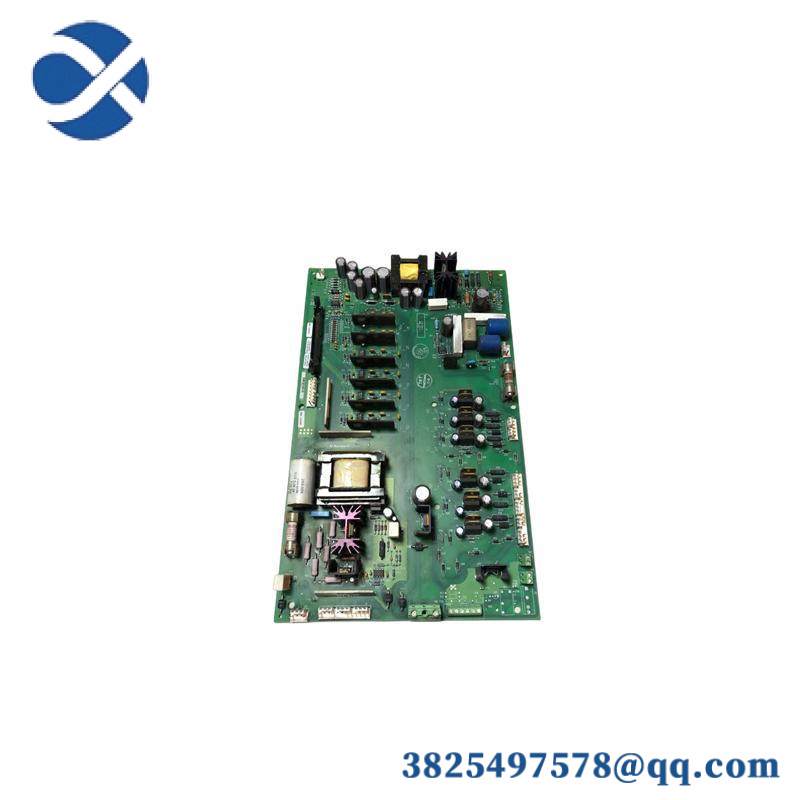

The ABB 1336-BDB-SP30D PCB Gate Drive Board is a critical component in modern industrial control systems, engineered to handle high-power switching tasks with exceptional efficiency and reliability. This module is specifically designed for applications requiring precise control over semiconductor devices, ensuring smooth operation under various environmental conditions.
Featuring a compact yet robust design, the 1336-BDB-SP30D is built with high-quality materials that withstand harsh industrial environments. Its advanced gate drive technology ensures minimal power loss and enhanced system performance, making it an ideal choice for applications where reliability and durability are paramount.
With an operating voltage capability of 600V DC and a maximum current rating of 100A, this module is capable of driving large capacitive loads efficiently. It supports an operating frequency of up to 10kHz, allowing for rapid switching operations without compromising on stability or performance.
The integrated convection cooling system ensures optimal heat dissipation, maintaining the module’s performance and longevity even in high-temperature environments. The wide temperature range of -40°C to +85°C guarantees reliable operation across a broad spectrum of industrial settings, from cold storage facilities to hot manufacturing plants.
In addition to its technical specifications, the 1336-BDB-SP30D is designed with ease of integration in mind. It adheres to industry-standard interfaces and protocols, facilitating seamless installation and compatibility with existing control systems. Whether you’re upgrading an existing system or building a new one, this PCB Gate Drive Board is a versatile solution that delivers outstanding performance and operational reliability.
