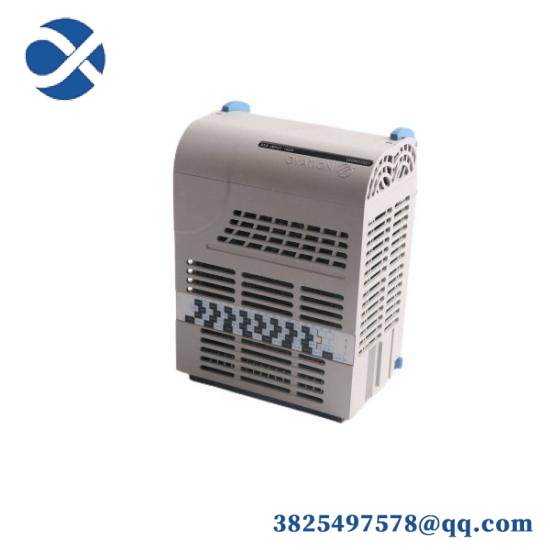

Ovation 5X00622G01 – 16 Channel RTD Input Module

Number of Channels:16

Type of Input:Resistance Temperature Detector (RTD)

Signal Range:-200°C to +850°C

Accuracy:+/-0.05% + 2LSB

Power Consumption:≤ 5 W

Operating Temperature Range:-40°C to +85°C

Storage Temperature Range:-40°C to +125°C

Connection Type:Terminal Block

Operating Voltage:24 VDC

Input Impedance:250 Ohms

    The Ovation 5X00622G01 is engineered to provide unparalleled precision in temperature measurement. With its 16 independent channels, it’s an ideal solution for complex industrial applications requiring multiple temperature readings.

    Each channel supports a wide range of RTD types, making it versatile for different industries including petrochemicals, power generation, and HVAC systems. Its high accuracy and resolution ensure reliable data for critical decision-making processes.

    Featuring a robust design with a compact size and low current consumption, the module is designed for efficient integration into existing systems without overloading supply lines. Its IP20 protection rating ensures durability against minor dust and splashes.

    The Ovation 5X00622G01 includes a Modbus RTU communication interface, facilitating seamless data exchange with SCADA systems and other automation devices. This enhances system interoperability and simplifies integration efforts.

    Designed for ease of installation and maintenance, the panel mount design allows quick setup and reduces downtime. The lightweight construction ensures minimal impact on system stability and overall efficiency.
