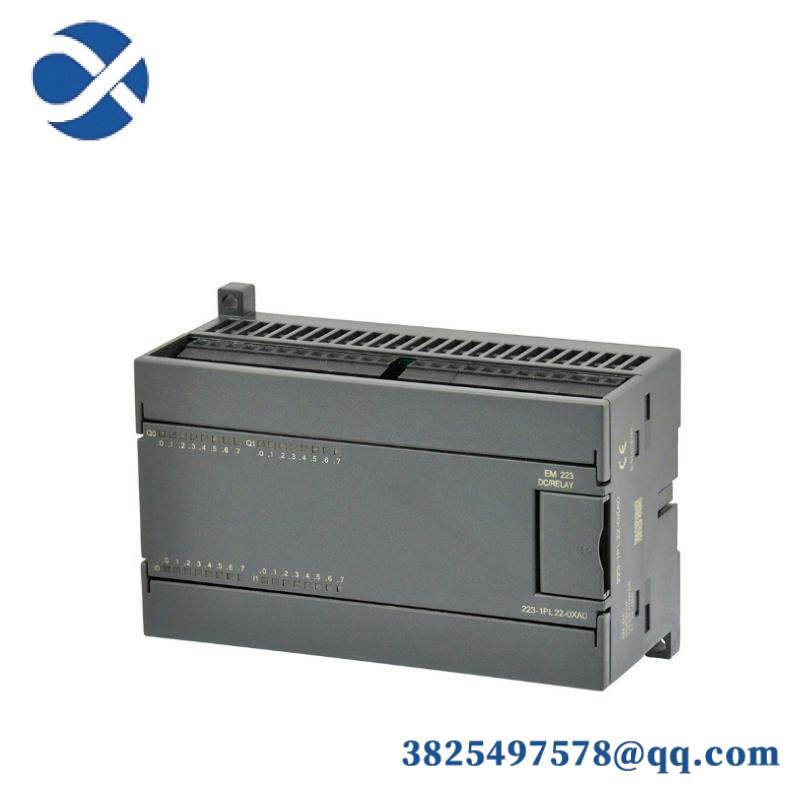

SIEMENS 6ES7 223-1PL22-0XA0: Digital IO Relay Module

Model Type:Digital IO Relay Module

Manufacturer:SIEMENS

Model Number:6ES7 223-1PL22-0XA0

Quantity per Package:1

Input Capacity:16 DI

Output Capacity:16 DO

Relay Type:Relay

Operating Voltage:24V DC

Operating Current:0.5A

Switching Frequency:0.1~600Hz

Connection Type:Source Output

Switching Configuration:PNP

Color Code:CC02

Diagnostic Features:Short-circuit to L+, Ground, Wire Break, Supply Voltage

Net Weight:0.077 lb

Product Class:-

Group Code:R111

    Integrating advanced technology with reliability, the SIEMENS 6ES7 223-1PL22-0XA0 Digital IO Relay Module is designed for seamless integration into complex industrial automation systems. This robust module ensures stable performance across a wide range of applications, from manufacturing lines to energy management systems.

    Featuring 16 digital input channels (DI) and 16 digital output channels (DO) configured in relay form, this module offers unparalleled precision and control. Its high current rating of 0.5A per channel supports a variety of electrical loads without compromising on performance.

    With an operating frequency range of 0.1 to 600 Hz, the module is versatile enough to meet the demands of fast-paced industrial processes. The built-in PLC function simplifies programming and configuration, allowing for efficient system integration and maintenance.

    The inclusion of fieldbus modules such as DeviceNet, Profibus, LonWorks, and CANopen expands its connectivity options, ensuring compatibility with a broad spectrum of existing industrial networks. The integrated EMI filter and RFI switch for mains provide enhanced protection against electromagnetic interference and power line disturbances.

    Engineered for durability and safety, this module boasts a compact yet rugged design with IP20 rating, making it suitable for environments with moderate dust and splash resistance. It comes equipped with comprehensive protection features to safeguard against common issues like short-circuits, wire breaks, and voltage fluctuations, ensuring uninterrupted operation.
