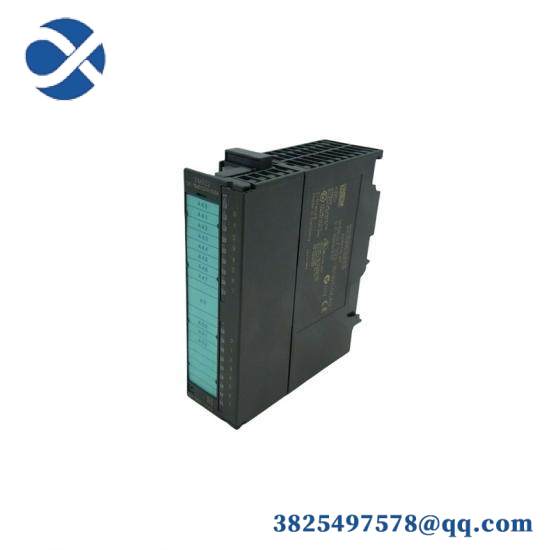

Siemens SM322 Digital Output Module 6ES7 322-1BH01-0AA0 – Industry-grade Control Solution

Type:Digital Output

Model Number:6ES7 322-1BH01-0AA0

Manufacturer:Siemens

Module Family:S7-300

Number of Channels:16

Channel Type:Relay

Operating Voltage (AC):120 – 230 V

Operating Current (AC):1 A

Input Voltage (DC):24 V

Isolation:Optically isolated

Dimensions (WxHxD):5.10 x 15.00 x 13.20 cm

Weight:0.326 kg

Operating Temperature Range:-25°C to 60°C

Storage Temperature Range:-40°C to 85°C

Connector Type:20-pin

Mounting:Panel mount

    Engineered for reliability and precision, the Siemens SM322 Digital Output Module is a key component in any industrial automation system. With its robust design and comprehensive feature set, it enables seamless integration into the SIMATIC S7-300 family, ensuring efficient and dependable operation.

    This module is equipped with 16 relay outputs, providing versatile control options for various industrial applications. Its compatibility with a wide range of power supplies makes it suitable for diverse operating conditions, from low-voltage DC systems to high-voltage AC environments.

    Featuring optically isolated connections, the SM322 protects against electrical interference and ensures stable signal transmission even in challenging environments. The integrated diagnosis capabilities monitor and alert users to potential issues such as short circuits, open circuits, and power supply malfunctions, minimizing downtime and enhancing operational efficiency.

    With its compact size and lightweight construction, the Siemens SM322 Digital Output Module is easily integrated into existing systems without compromising on performance. Its user-friendly design facilitates quick installation and maintenance, making it an ideal choice for both new and retrofit projects.

    Backed by Siemens’ commitment to quality and innovation, this module comes with comprehensive documentation and support, ensuring a smooth setup and operation process. It is part of the extensive SIMATIC portfolio, offering seamless integration with other Siemens automation components for a cohesive and powerful control system.
