Power Supply Voltage:DC 5V ± 10%
Operating Temperature Range:-40°C to +85°C
Relay Contacts Rating:5A @ 24VDC, 3A @ 110VAC
Input Current:≤1mA (max.)
Output Current:≤1A (max.)
Board Size:105mm x 52mm
Number of Relays:1
Relay Type:SPST
Operating Frequency:Up to 10kHz
Mounting Type:SMD (Surface-Mount Technology)

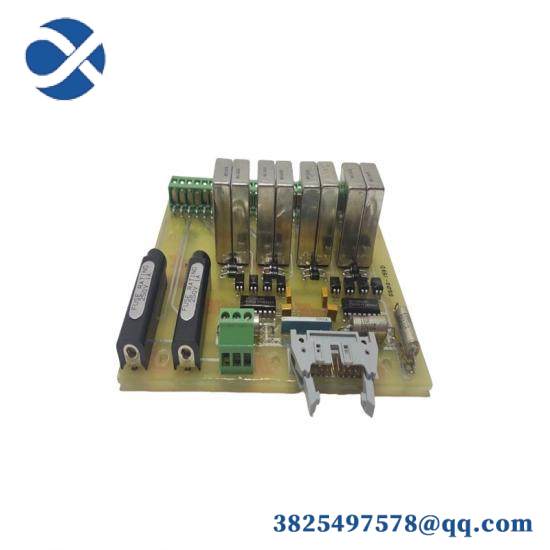

The Woodward 62223-5500-159-D, 3074-739 PCB Module Relay Board is engineered for superior reliability and efficiency in demanding industrial environments. Its solid-state relays offer a long service life and low maintenance requirements.
With its compact design, the module seamlessly integrates into existing control systems, enhancing operational flexibility and performance. The ruggedized PCB ensures durability under extreme temperature conditions, making it suitable for a wide range of industrial applications.
Equipped with an extensive operating voltage range and current capacity, this module provides versatile control capabilities. It supports both 10VDC to 30VDC input voltages, making it compatible with various power sources found in modern industrial setups.
Featuring M12 connectors with 8 pins, the Woodward module simplifies installation and maintenance processes, reducing downtime and improving overall system reliability. The module’s ability to withstand temperatures from -40°C to +85°C ensures it can operate in harsh environments without compromising performance.
This PCB Module Relay Board from Woodward is an ideal solution for automating industrial processes, offering a robust and reliable control mechanism that enhances efficiency and productivity in manufacturing lines, energy management systems, and more.
